Telecommunication cabinets
Specification
| Description | Telecommunication mounting cabinet is designed to accommodate active and passive telecommunication equipmen |
| Removable side panels | Yes |
| Degree of dust and moisture protection | IP23 |
| Model | Version | Mounting height (U) | The front door | Color | P/N | |

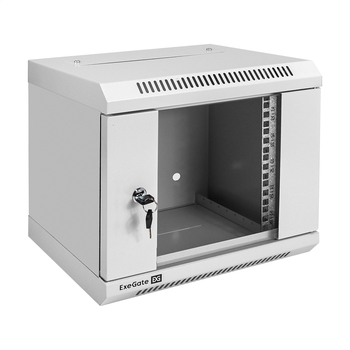

| EC-WM-6U.280.G.GREY | 10" | 6U | Tempered glass | Light grey | 350x280x287 | EX298623 |

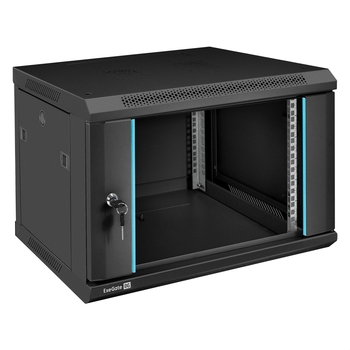

| EC-WM-6U.450.G.BLACK | 19" | 6U | Tempered glass | Black | 600x450x370 | EX298605 |

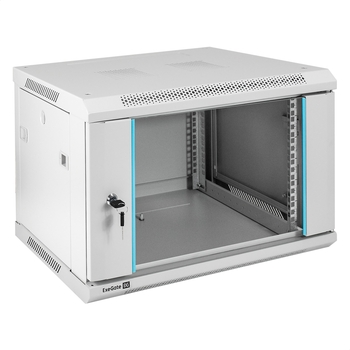

| EC-WM-6U.450.G.GREY | 19" | 6U | Tempered glass | Light grey | 600x450x370 | EX298599 |

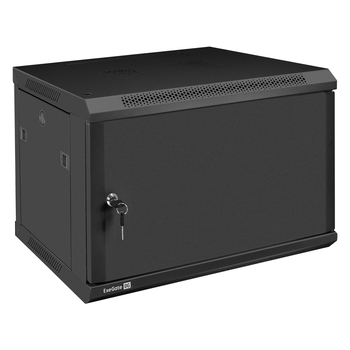

| EC-WM-6U.450.M.BLACK | 19" | 6U | Metal | Black | 600x450x370 | EX298617 |

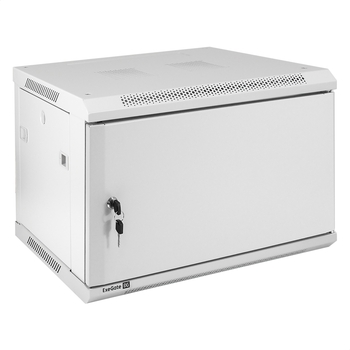

| EC-WM-6U.450.M.GREY | 19" | 6U | Metal | Light grey | 600x450x370 | EX298611 |

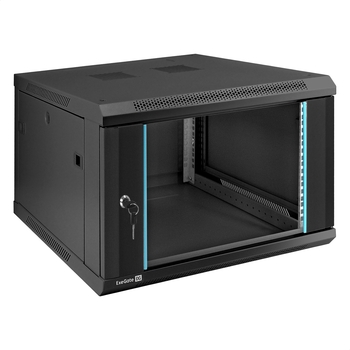

| EC-WM-6U.600.G.BLACK | 19" | 6U | Tempered glass | Black | 600x600x370 | EX298606 |

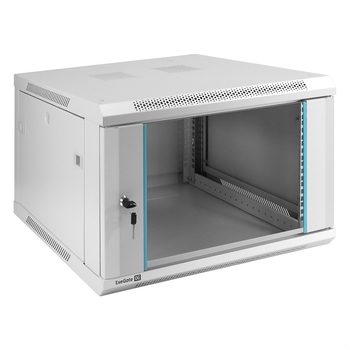

| EC-WM-6U.600.G.GREY | 19" | 6U | Tempered glass | light grey | 600x600x370 | EX298600 |

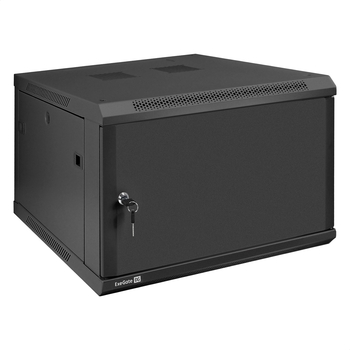

| EC-WM-6U.600.M.BLACK | 19" | 6U | Metal | Black | 600x600x370 | EX298618 |

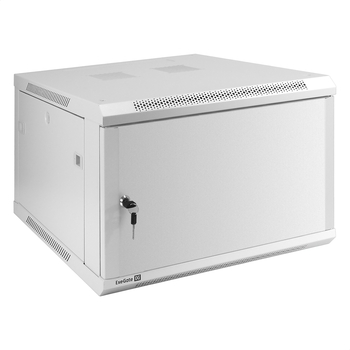

| EC-WM-6U.600.M.GREY | 19" | 6U | Metal | Light grey | 600x600x370 | EX298612 |

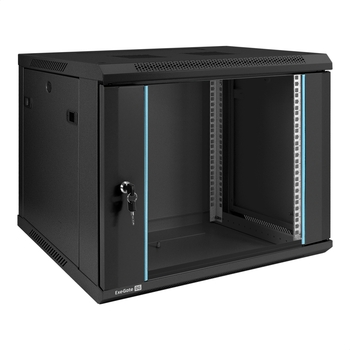

| EC-WM-9U.450.G.BLACK | 19" | 9U | Tempered glass | Black | 600x450x500 | EX298607 |

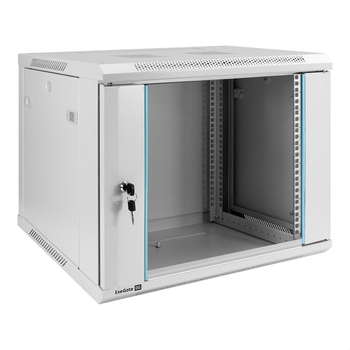

| EC-WM-9U.450.G.GREY | 19" | 9U | Tempered glass | Light grey | 600x450x500 | EX298601 |

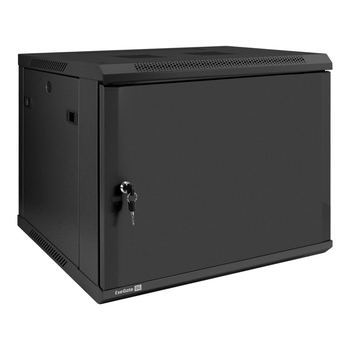

| EC-WM-9U.450.M.BLACK | 19" | 9U | Metal | Black | 600x450x500 | EX298619 |

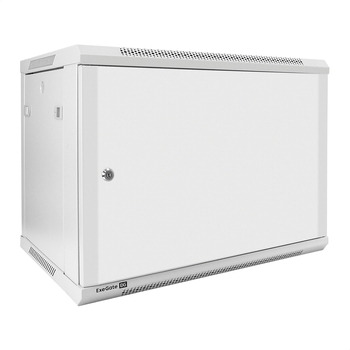

| EC-WM-9U.450.M.GREY | 19" | 9U | Metal | Light grey | 600x450x500 | EX298613 |

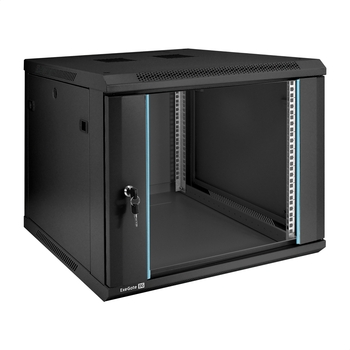

| EC-WM-9U.600.G.BLACK | 19" | 9U | Tempered glass | Black | 600x600x500 | EX298608 |

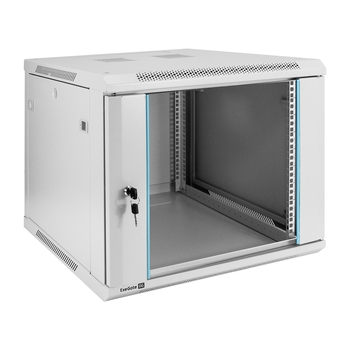

| EC-WM-9U.600.G.GREY | 19" | 9U | Tempered glass | Light grey | 600x600x500 | EX298602 |

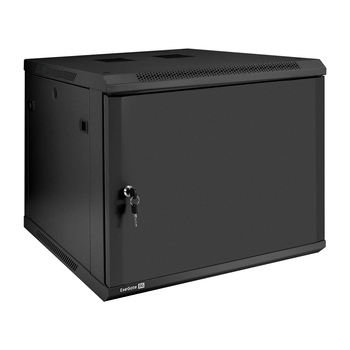

| EC-WM-9U.600.M.BLACK | 19" | 9U | Metal | Black | 600x600x500 | EX298620 |

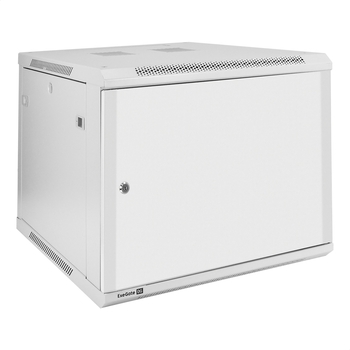

| EC-WM-9U.600.M.GREY | 19" | 9U | Metal | Light grey | 600x600x500 | EX298614 |

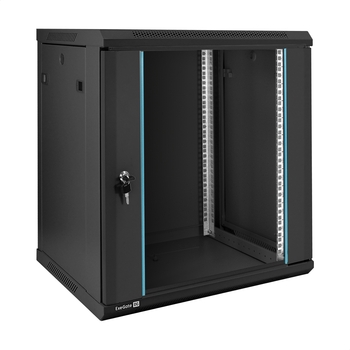

| EC-WM-12U.450.G.BLACK | 19" | 12U | Tempered glass | Black | 600x450x635 | EX298609 |

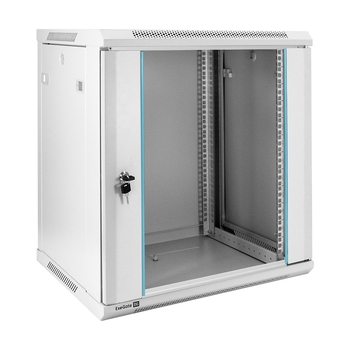

| EC-WM-12U.450.G.GREY | 19" | 12U | tempered glass | light grey | 600x450x635 | EX298603 |

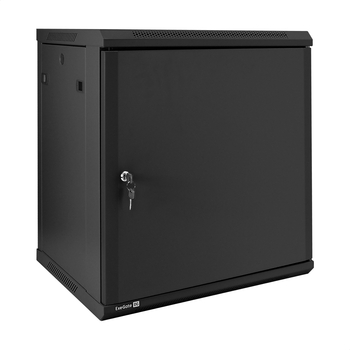

| EC-WM-12U.450.M.BLACK | 19" | 12U | Metal | Black | 600x450x635 | EX298621 |

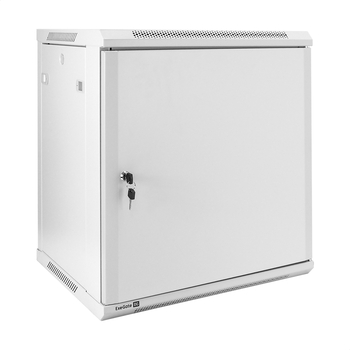

| EC-WM-12U.450.M.GREY | 19" | 12U | Metal | Light grey | 600x450x635 | EX298615 |

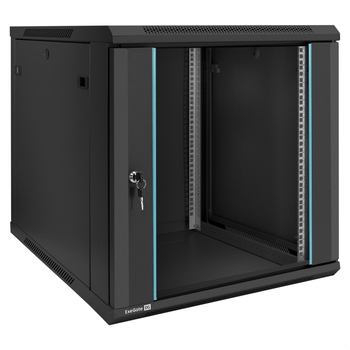

| EC-WM-12U.600.G.BLACK | 19" | 12U | Tempered glass | Black | 600x600x635 | EX298610 |

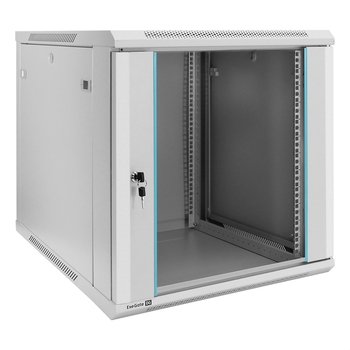

| EC-WM-12U.600.G.GREY | 19" | 12U | Tempered glass | Light grey | 600x600x635 | EX298604 |

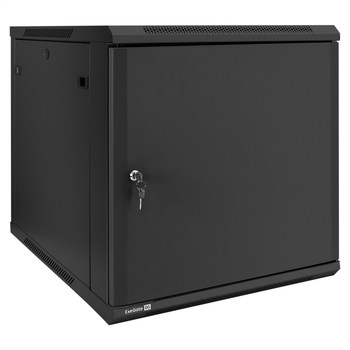

| EC-WM-12U.600.M.BLACK | 19" | 12U | Metal | Black | 600x600x635 | EX298622 |

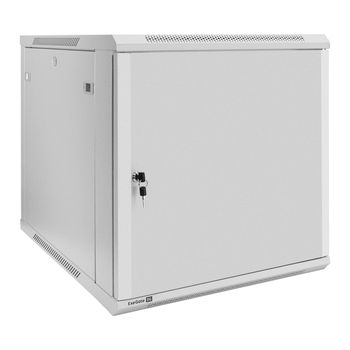

| EC-WM-12U.600.M.GREY | 19" | 12U | Metal | Light grey | 600x600x635 | EX298616 |
