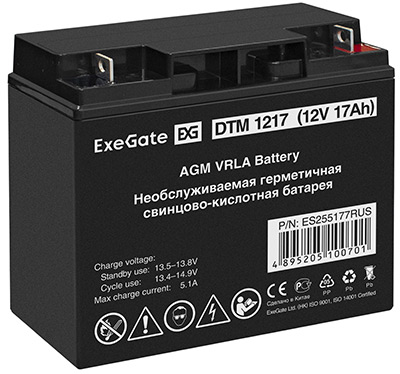

Series DTM
 |
Series DTM |
| Description | ExeGate DTM series lead-acid maintenance-free batteries are manufactured using AGM technology. They have low internal resistance and self-discharge. Optimized for continuous charging mode (buffer mode) or discharge-charge mode (cyclic mode). |
| Features | The case is made of plastic that does not support Gorenje. The battery design eliminates electrolyte leakage. Internal gas recombination system, does not require adding water. There are no restrictions on transportation by any type of transport. The battery can be operated in any position other than upside down. |
| Standards and certifications | Declaration of conformity GOST 12.2.007.12-88; GOST R IEC 61056-1-2012 Pn. 4.1.2 - 4.1.4, 4.4, 5.4, 5.7 - 5.10; GOST R IEC 60896-22-2015 Clause 4.2,4.3,4.4 |
| Battery Life | |
| In buffered mode | 6 years (at 25°C) |
| In cyclic mode | 1200 cycles at 30% depth of discharge |
| Number of charge-discharge cycles in cyclic mode at 100% discharge | 240 |
| Self-discharge | 3% per month at 20°C |
| Charge method | Constant voltage charge (25°C) |
| Cyclic mode | 2.35 - 2.4 V / cell |
| Buffer mode | 2.25 - 2.3 V / cell |
| Cabinet material | ABS plastic |
| Temperature modes | |
| Storage | from -35°C to + 60°C |
| Charge | from -10°C to + 60°C |
| Discharge | from -20°C to + 60°C |
| Warranty | 12 months if operating conditions are observed |
| Model | Weight, kg | Terminal type | Supply voltage, V | Battery capacity, Ah | Maximum discharge current (25°C) | Length, mm | Width, mm | Height, mm | Height with terminal, mm | P/N | EAN |
| DTM 6012 (6V 1.2Ah) | 0,30 | F1 | 6 | 1,2 | 18A(5s) | 97 | 24 | 52 | 58 | EX282945 | 4895205115330 |
| DTM 6045 (6V 4.5Ah) | 0,72 | F1 | 6 | 4,5 | 70A(5s) | 70 | 47 | 101 | 107 | EX282947 | 4895205115354 |
| DTM 607 (6V 7Ah) | 1,11 | F1 | 6 | 7 | 110A(5s) | 151 | 34 | 94 | 100 | EX282951 | 4895205115392 |
| DTM 609 (6V 9Ah) | 1,25 | F1 | 6 | 9 | 120A(5s) | 151 | 34 | 94 | 100 | EX294052 | 4895205138216 |
| DTM 609 (6V 9Ah) | 1,25 | F2 | 6 | 9 | 120A(5s) | 151 | 34 | 94 | 100 | EX297508 | 4895205174801 |
| DTM 12012 (12V 1.2Ah) | 0,53 | F1 | 12 | 1,2 | 19A(5s) | 97 | 44 | 53 | 59 | EX282956 | 4895205115446 |
| DTM 12022 (12V 2.2Ah) | 0,98 | F1 | 12 | 2,2 | 37.5A(5s) | 178 | 35 | 60 | 66 | EX282957 | 4895205115453 |
| DTM 12032 (12V 3.2Ah) | 1,36 | F1 | 12 | 3,2 | 52A(5s) | 135 | 67 | 61 | 61 | EX282959 | 4895205115477 |
| DTM 12045 (12V 4.5Ah) | 1,52 | F1 | 12 | 4,5 | 75A(5s) | 90 | 70 | 101 | 107 | EP212310 | 4897040854887 |
| DTM 12045 (12V 4.5Ah) | 1,52 | F2 | 12 | 4,5 | 75A(5s) | 90 | 70 | 101 | 107 | EX297511 | 4895205174832 |
| DTM 1205 (12V 5Ah 1221W) | 1,68 | F1 | 12 | 5 | 81A(5s) | 90 | 70 | 101 | 107 | ES255175 | 4895205100688 |
| DTM 1205 (12V 5Ah 1221W) | 1,68 | F2 | 12 | 5 | 81A(5s) | 90 | 70 | 101 | 107 | EX297514 | 4895205174863 |
| DTM 1207 (12V 7Ah) | 2,04 | F1 | 12 | 7 | 115A(5s) | 151 | 65 | 95 | 102 | EX297516 | 4895205174887 |
| DTM 1207 (12V 7Ah) | 2,04 | F2 | 12 | 7 | 115A(5s) | 151 | 65 | 95 | 102 | EP129858 | 4897040852418 |
| DTM 12072 (12V 7.2Ah) | 2,09 | F1 | 12 | 7.2 | 110A(5s) | 151 | 65 | 100 | 100 | EX285952 | 4895205122918 |
| DTM 12072 (12V 7.2Ah) | 2,09 | F2 | 12 | 7.2 | 110A(5s) | 151 | 65 | 100 | 100 | EX297517 | 4895205174894 |
| DTM 1209 (12V 9Ah 1234W) | 2,36 | F1 | 12 | 9 | 119A(5s) | 151 | 65 | 94 | 100 | ES252438 | 4897040859929 |
| DTM 1209 (12V 9Ah 1234W) | 2,36 | F2 | 12 | 9 | 119A(5s) | 151 | 65 | 94 | 100 | EX282966 | 4895205115545 |
| DTM 1212 (12V 12Ah 1251W) | 3,42 | F2 | 12 | 12 | 187A(5s) | 151 | 98 | 95 | 101 | EX282967 | 4895205115552 |
| DTM 1217 (12V 17Ah) | 5,52 | F3 | 12 | 17 | 240A(5s) | 181 | 77 | 167 | 167 | ES255177 | 4895205100701 |
| DTM 1218 (12V 18Ah) | 5,52 | F3 | 12 | 18 | 240A(5s) | 181 | 77 | 167 | 167 | EX293360 | 4895205133488 |
| DTM 1226 (12V 26Ah) | 8,20 | for M5 bolt | 12 | 26 | 340A(5s) | 166 | 175 | 125 | 126 | EX282971 | 4895205115590 |
| DTM 1233L (12V 33Ah) | 10,80 | for M6 bolt | 12 | 33 | 470A(5s) | 197 | 131 | 159 | 165 | EX297555 | 4895205176522 |
| DTM 1240L (12V 40Ah) | 14,00 | for M6 bolt | 12 | 40 | 570A(5s) | 198 | 166 | 170 | 170 | EX282977 | 4895205115651 |
| DTM 1255 (12V 55Ah) | 16,40 | for M6 bolt | 12 | 55 | 550A(5s) | 229 | 138 | 208 | 208 | EX285667 | 4895205121942 |
| DTM 1265L (12V 65Ah) | 22,50 | for M6 bolt | 12 | 65 | 680A(5s) | 350 | 167 | 179 | 179 | EX297558 | 4895205176553 |
| DTM 1275L (12V 75Ah) | 23,50 | for M6 bolt | 12 | 75 | 890A(5s) | 259 | 169 | 208 | 215 | EX297560 | 4895205176577 |
| DTM 12100L (12V 100Ah) | 29,20 | for M6 bolt | 12 | 100 | 1050A(5s) | 329 | 172 | 214 | 220 | EX297561 | 4895205176584 |
| DTM 12120L (12V 120Ah) | 34,20 | for M8 bolt | 12 | 120 | 1100A(5s) | 410 | 176 | 227 | 227 | EX297562 | 4895205176591 |
| DTM 12150L (12V 150Ah) | 41,00 | for M8 bolt | 12 | 150 | 1550A(5s) | 486 | 171 | 241 | 241 | EX297563 | 4895205176607 |
| DTM 12200L (12V 200Ah) | 60,30 | for M8 bolt | 12 | 200 | 600A(5s) | 523 | 240 | 219 | 225 | EX297564 | 4895205176614 |
